UV laser directly breaks the bonds holding a material's atomic constituents which makes this atomization a "cold" process, producing virtually no peripheral heat.
Advantages of UV laser marking machine:
Focused UV light spot size is small, heat-affected area during processing is mimimum, So it is used in ultra fine and special material's marking.
Since UV laser did not produce any thermal effects and burning issues,the result of the marking is precise and smooth.
A lot of material will absorb UV light at 355nm,so UV laser are suitable for processing more types of material.

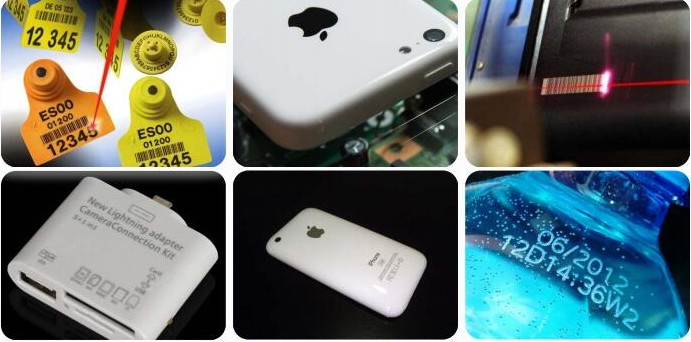

Applications of UV laser marking machine:
cosmetics,pharmaceuticals,food and other polymer bottles'surface. Marking effect is fine,clear and solid, which is better than the injekt printing and no pullution produced.
Also used in marking and dicing flexible PCB board, drilling tiny hole or blind-hole on silicon wafers, two-dimensional coding on LCD, glass container surface, metal surface coating, plastic keys, electronic components, gifts, communication equipment, construction materials.

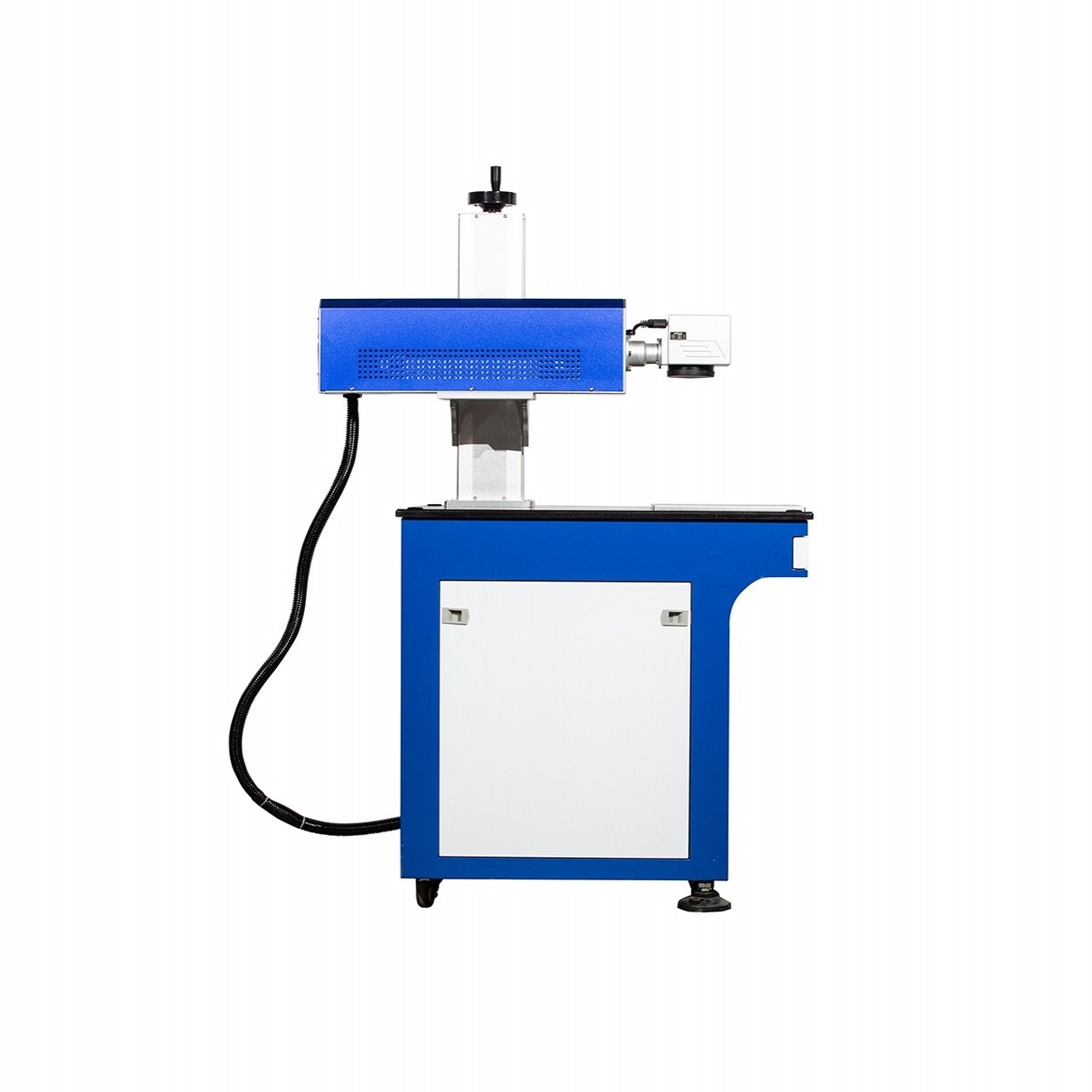

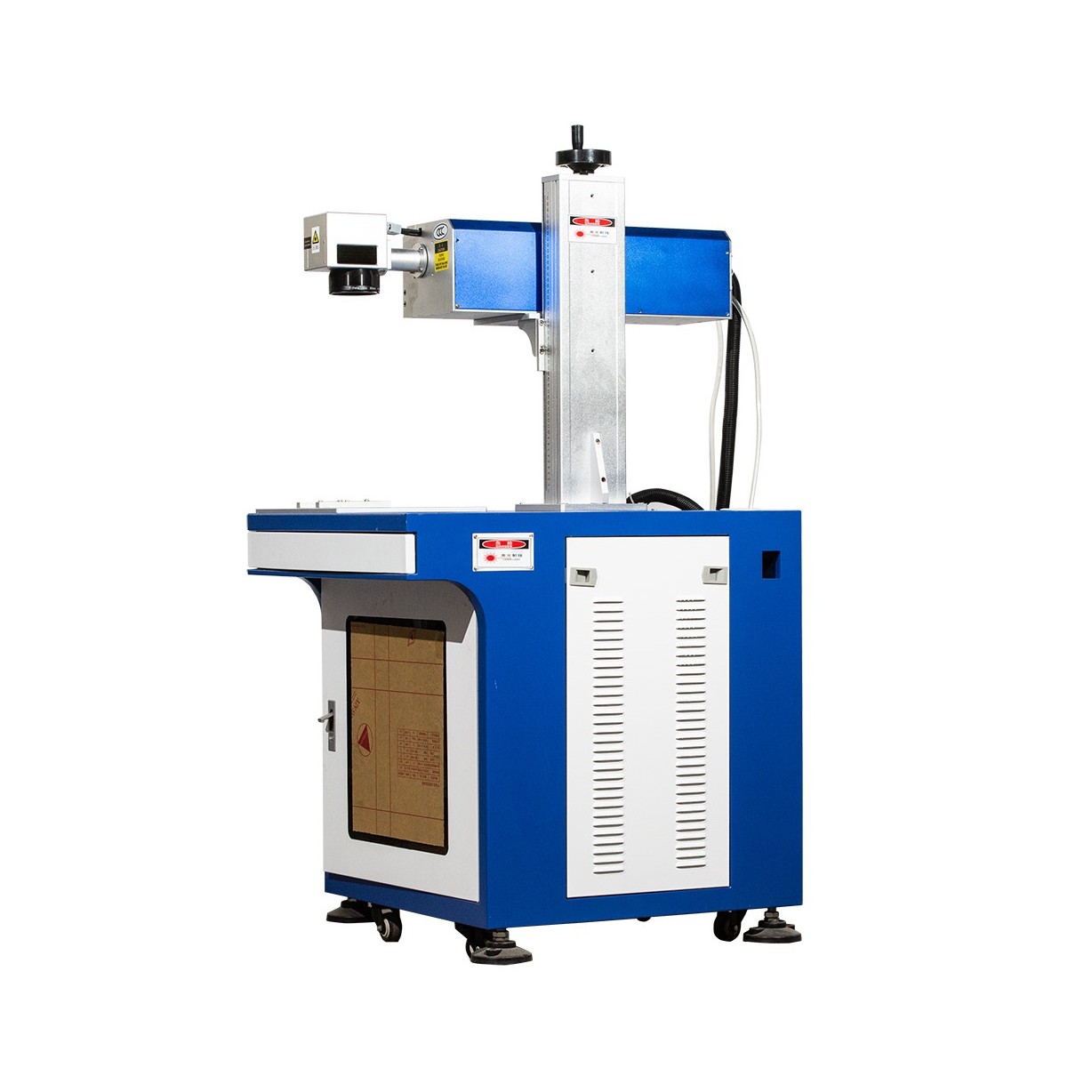

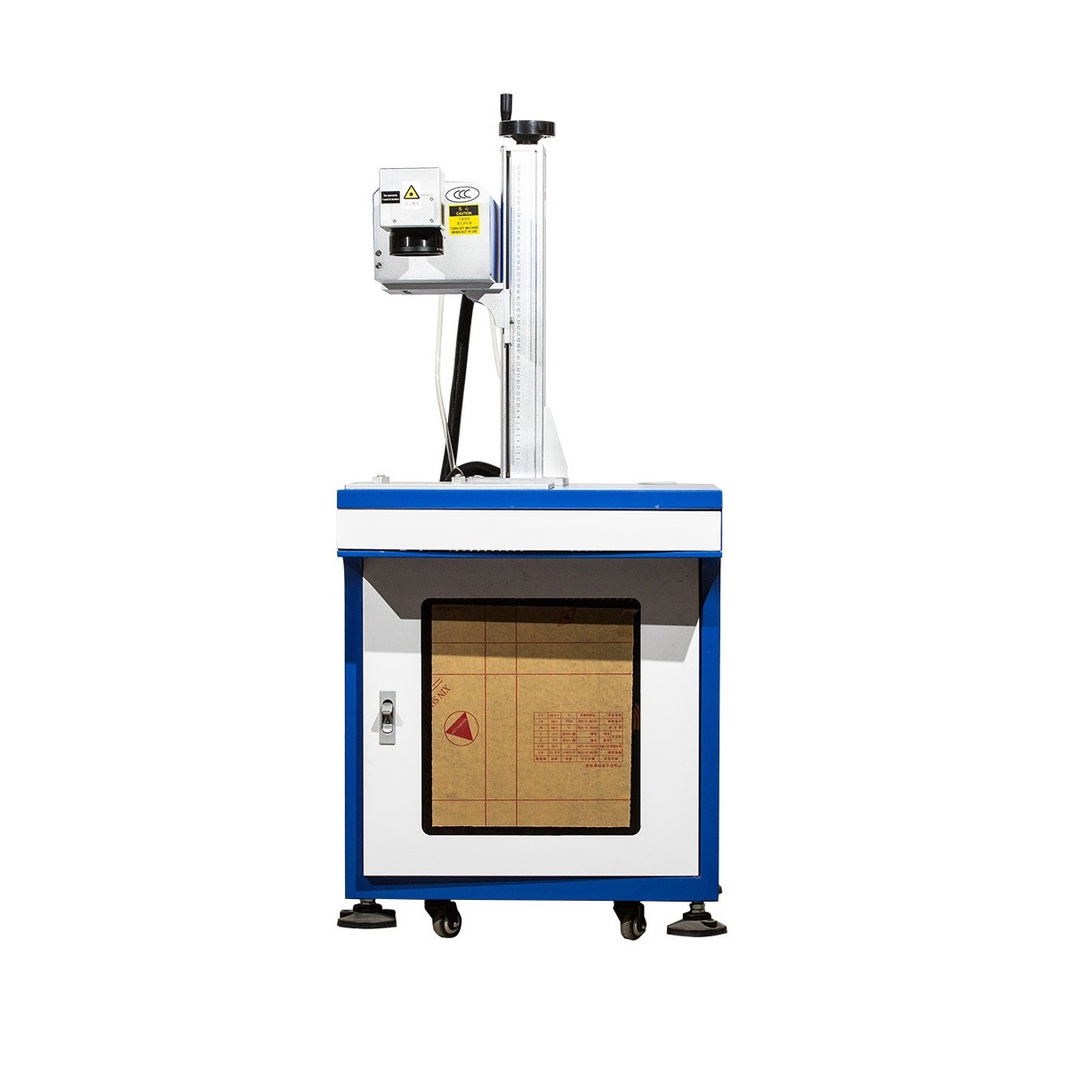

Model | ES-UV3W |
Output power | 3W/5W |
Working bench | Lifting bench |
Laser wavelength | 355nm |
Laser repeat frequency | 1-100kHz |
Speed | 0-7000mm/s |
| Beam quality | <1.1 |
Precision | 0.001mm |
Minimum line width | 0.01mm |
Minimum height of characters | 0.05mm |
Cooling way | water cooling |
Marking range | 110x110mm |
Laser power supply | 0.8KW,220V/50Hz,110V/60HZ |
Software compatible | Auto-cad, Coreldraw, Photoshop software |
Package weight | 100KGS |
| Format support | BMP,PLT,DST,DXP,AI ETC. |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine
24 hours technical calling or e-mail service for any technical questions of our machine
We offer detailed User Manual and videos for machine installation, operation, and also for Software
