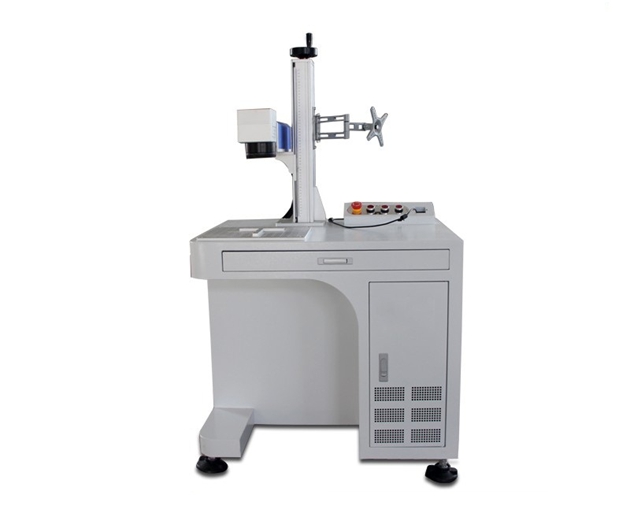

Fiber laser marking machine mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable.
Name | Origin(brand) | Remarks |
Optical laser | Raycus (Maxphotonics, IPG,SPI fiber laser for optional) | Long service life, high reliability, fine beam quality |
Galvo mirror | Galvo-tech(digital) | Fine marking, more quick and high reliability |
F-θ lens | Wavelength | High quality optical device |
Marking software | Special marking Software (EzCad2.5.3 software) | Powerful, simple and convenient operation, Auto-cad, Coreldraw, Photoshop software compatible form |
Control computer | China | Lenovo |
Control cabinet | China | Optical fiber special cabinet, all the mold production,high seal |
Application Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware,Sanitary equipments, Hardware tools, Knife,Glasses, Clock, Cooker, Stainless steel products etc.
Application Materials:
Engraving bar codes, decorative map, LOGO,factory number, production date, dial on all Metals(Gold, silver, copper, alloy, aluminum, steel, stainless steel,name card), Non-metal(Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments,glasses watches and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc)
Model | ES-FD20W |
Fiber laser source | RAYCUS(Maxphotonics/IPG/SPI laser optional) |
Output power | 20W/30W/50W |
Laser wavelength | 1060nm |
Laser repeat frequency | 20-100kHz |
Speed | 10000mm/s |
| Marking depth | 0.05-1.5mm(different according material) |
Precision | 0.001mm |
Minimum line width | 0.01mm |
Minimum height of characters | 0.05mm |
Cooling way | Air cooling |
Marking range | 70x70mm/110x110mm/150x150mm/200x200mm optional |
Laser power supply | 0.8KW,220V/50Hz,110V/60HZ |
Software compatible | Auto-cad, Coreldraw, Photoshop software |
Package weight | 100KGS |
| Optional device | Online flying marking, rotary device |
Parts with the fiber machine:
No. | Name | Unit | Quantity |
1 | Computer | pc | 1 |
2 | Remote control switch | pc | 1 |
3 | Dimmer piece | pc | 1 |
4 | Randonm tools | set | 1 |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine
24 hours technical calling or e-mail service for any technical questions of our machine
We offer detailed User Manual and videos for machine installation, operation, and also for Software
