Synthetic glass (acrylic) polishing, Oxy-hydrogen generator is a machine using high temperature flame to make acrylic edge smooth and bright.

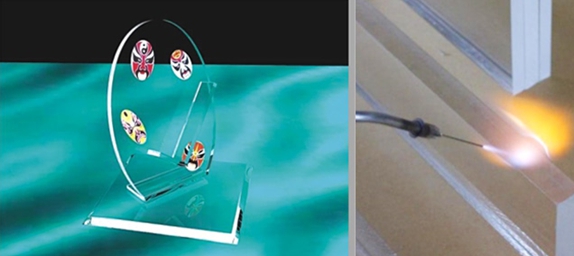

The heat polishing on the acrylic rough surface can be achieved as long as the flame passing by gently, and the acrylic products will become glittery and bright.

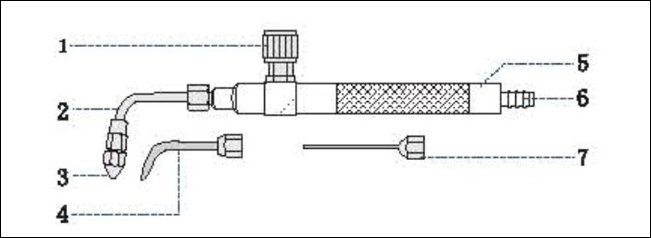

1.Adjusting valve; 2. Connector; 3. Flame nozzle; 4. Bend flame nozzle (option); 5. Flame gun bar; 6. Air inlet port; 7. Pin type flame nozzle (option).
Feature:
1, Production by demand without inventory, Environmental friendly, safe and reliable
2, Simple raw materials: only water and electricity required, immediate production and use once switched on; economical and practical; high removability; small size; high portability and suitable for outdoor operation,
3, Its electrolyze adopts series and parallel compound technique, which makes the electrolysis more efficient.
4, This polisher is suitable for precise process with concentrated flame.
5, Only water and ,no pollution on environment.
6, High cost performance and low investment.
Application:
Synthetic Glass Industry:

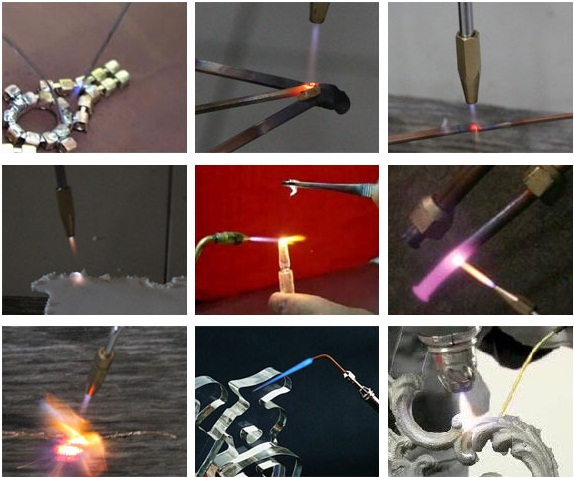

The synthetic glass (acrylic) polisher works with high temperatures flames that wrought the organic handicraft article.
School laboratory:
Provides a convenient and safe oxy-hydrogen flame.

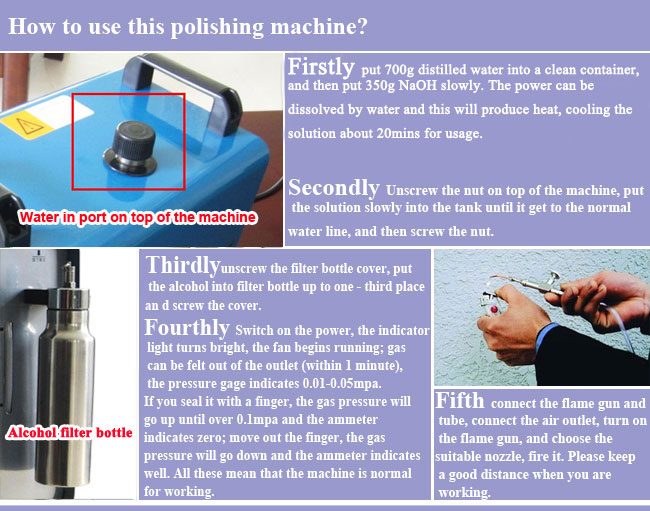

How to use the polisher:
Input Voltage | AC 220V/110V |
Rated Output Gas | 75L / H |
Operation Gas Pressure | 0.08-0.13Mpa |
Ambient Temperature | 10℃-40℃ |
Flame Temperature | ≥2800℃ |
Water Consumption | 0.015L / H |
Flame Gun No. | Single |
Elecrtolyzer Capacity | 1.6L |
Machine Dimension | 320mm x 220mm x 310mm |
Package Dimension | 450mm x 280mm x 370mm |
Machine Weight | 6KGS |
Package Weight | 8KGS |
Package | Carton box with foam fixed |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine;
24 hours technical calling or e-mail service for any technical questions of our machine;
We offer detailed User Manual and videos for machine installation, operation, and also for Software.
