Engraving and milling machine is mainly used for PVC, acrylic, color board, EVA foam, engineering plastics, wood carving, stainless steel engraving, aluminum cutting,copper cutting etc.,
It also can be applied to engrave the PCB, IC polished wood model mold.
The main application areas: industrial production, technology development, advertising design, art, school teaching and DIY design.
Feature:
1. New and beautiful machine design.
2. Z axis can reach up to 145mm, which can meet the large objects carving and adding the fourth axis requirements.
3. All the XYZ axis travel is equipped with limit switch, avoiding the trouble of operation process.
The Range of Processing Material:
300W is for PVC, acrylic, plastic, wood model, ordinary wood and other soft materials;
600W is for PVC, acrylic, plastic, PCB board, IC polished, color plates, bakelite, wood model, wood, hardwood, etc;
800W is for PVC, acrylic, plastic, PCB board, IC polished, color plates, EVA foam, carbon fiber, glass fiber board,wood model, wood, hardwood and soft metal and other materials.long time working.
1500W and 2200W is for PVC, acrylic, plastic, PCB board, IC polished, color plates, EVA foam, carbon fiber, glass fiber board, graphite,wood model, wood,
hardwood, copper, steel, iron, aluminum alloy, jade and jadeite, etc. long time working.

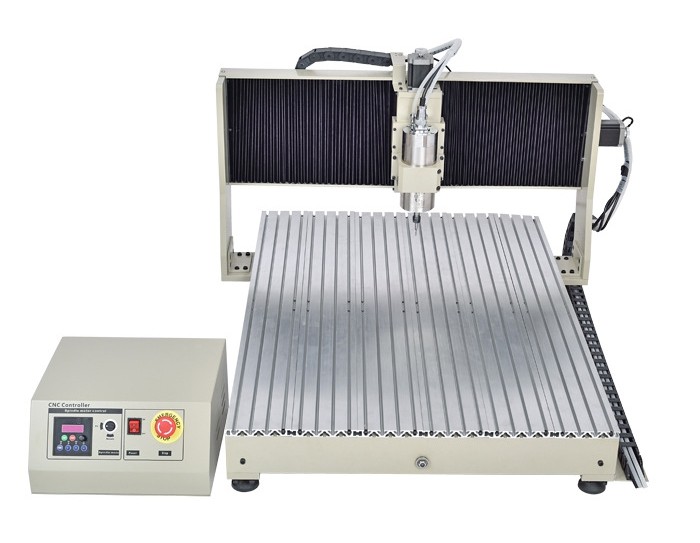

Model: | ES-6090Z |
Machine dimension: | 1150x975x650mm |
Bed dimension: | 1045x720x150mm |
Frame material: | 6061 Hard aluminum alloy |
Effective travel area: | X axis: 655mm, Y axis: 870mm, Z axis: 145mm |
Acceptable material thickness: | ≤165mm |
Transmission unit: | SFU1204 and SFU1605 ball screw |
Spindle motor: | 2200W High-speed Converter Spindle, ER11 collet, 6mm core |
Cooling mode: | Water cooling, equipped with cooling submersible pump |
Cutting speed: | 50-1500mm per min(set corresponding speed according different materials) |
Power supply: | AC220V(Custom-made AC110V) |
Repeat positioning accuracy: | ≤0.05mm |
Software: | Mach3, EMC2 |
Compatible software: | TYPE3/MasterCAM/ Wentai and other CAM design software |
Command code: | G code/TAB file/nc file/NCC file |
Software environment | Windows XP 32 bite, Windows 7 32 bite |
Machine weight: | 93kg |
Package weight: | 105KGS |
Package size: | 120*105*70cm |
Packing list:
Machine | 1pc |
Auxiliary electric control box | 1pc |
Water pump | 1pc |
Training CD | 1pc |
Engraving tool | 5pc |
Spanners | 2pc |
T type screw nut | 4set |
Six angle wrench | 1set |
Parallel data lines | 1pc |
Power line | 1pc |
Package and Shipping:
Every machine is packed with great care and tough material. all our machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine;
24 hours technical calling or e-mail service for any technical questions of our machine
We offer detailed User Manual and videos for machine installation, operation, and also for Software.
