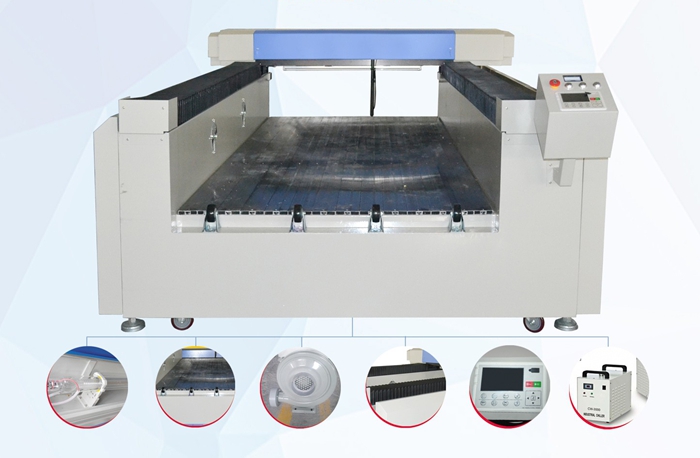

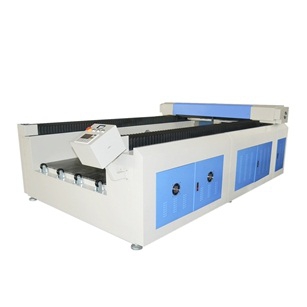

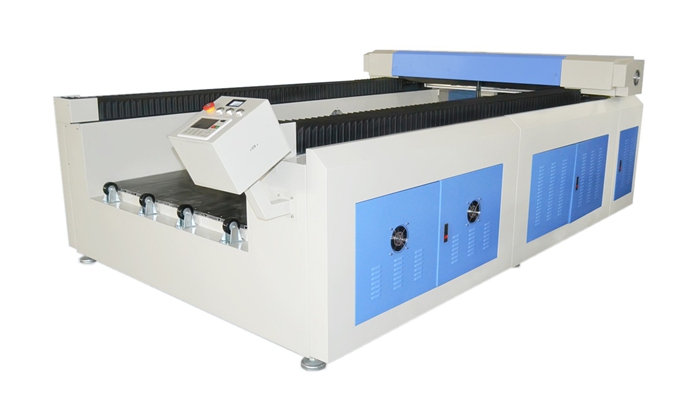

1325 Tombstone/Granite/Stone Laser Carving Machine
  • 1325 Tombstone/Granite/Stone Laser Carving Machine
  • 1325 Tombstone/Granite/Stone Laser Carving Machine
  • 1325 Tombstone/Granite/Stone Laser Carving Machine
1325 Tombstone/Granite/Stone Laser Carving Machine 1325 Tombstone/Granite/Stone Laser Carving Machine 1325 Tombstone/Granite/Stone Laser Carving Machine

1325 Tombstone/Granite/Stone Laser Carving Machine

Download Brochure

Adopting imported ball screw and Taiwan linear guide rail,the machine works faster with higher accurary.
With heavy duty design of machine bed, the performance of the machine is more stable and smooth.
Suitable for big size and different thickness carving Marble, granite, tombstone.


    Product Features:


    1).Adopting imported ball screw and Taiwan linear guide rail,the machine works faster with higher accurary.
    2).With heavy duty design of machine bed, the performance of the machine is more stable and smooth.
    3).Independent control cabinet with protective circuit increases the machine's property of anti-interference effectively.
    4).LCD display,USB interface, software supports direct file output from CorelDRAW and AutoCAD.
    5).Advanced technology of DSP control, function of memory for power failure and continuous working from stop point and password setting.
    6).With foot wheels and base cones, the machine is easy to move and fix.




    Applicable Materials:

    Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other non-metal materials, etc

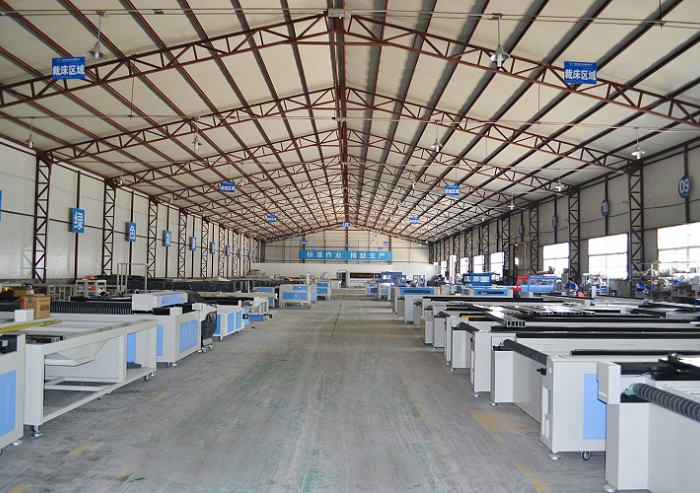

    Factory workshop:



    Type

    ES-D1325

    Laser power

    60w/80w/100W

    Working size

    1300x2500mm

    Laser type

    Sealed CO2 laser tube

    Working table

    Flat worktable

    Cooling type

    Water cooling

    Engraving speed

    0-60000mm/min

    Cutting speed

    0-40000mm/min

    Controller

    DSP offline controlling

    Smallest character

    Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm

    Locating precision

    ≤±0.01mm

    Supported graphic format

    PLT,AI,BMP.DST,DXF etc.

    Power supply

    AC 110 - 220V±10%, 50 - 60Hz

    Operating temperature

    0-45°C

    Compatible software

    Coreldraw,Photoshop,AutoCAD,

    Color separation

    yes

    Operation system

    Windows98/ME/2000/XP/VISTA/Windows7/8/10

    Machine size

    3.26x2.11x1.2m

    Machine weight

    1100KGS

    Package size

    3.97x2.18x1.53m

    Package weight

    1300KGS

    Recommended spare partsLaser tube and lens


    Package and Shipping:

    Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.

    Guarantee and after sale service:

    2 year guarantee for whole machine; 5 months for laser tube and mirrors.
    24 hours technical calling or e-mail service for any technical questions of our machine.
    We offer detailed User Manual and videos for machine installation, operation, and also for Software.
