Product Features:

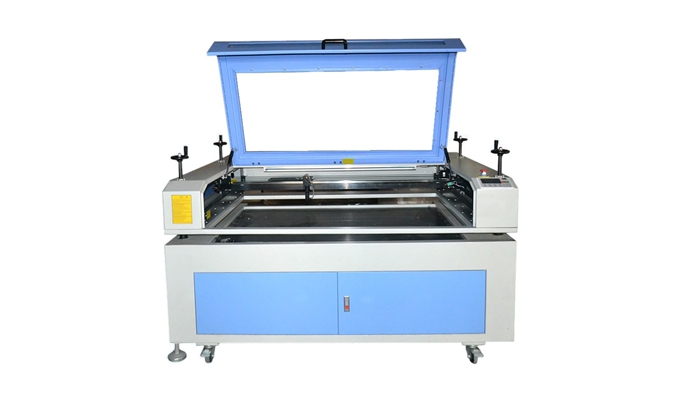

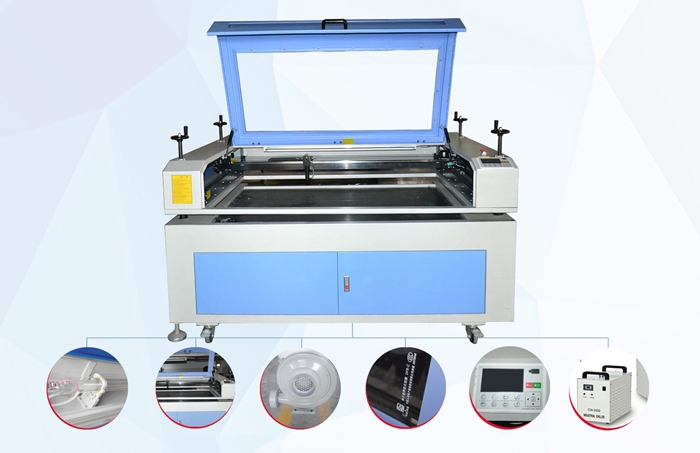

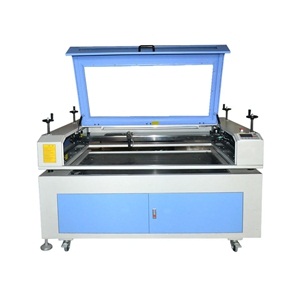

It’s also called separated type stone laser engraving machine.we developed this type machine for convenience of our customers demands for heavy stone carvings. this machine is designed by upper part and lower part. The two parts can be separated. The upper part can be movable. Or take it off from the machine, directly putting on the stone. The lower part can be configure suitable platform according to the customers need. The design changes the traditional engraving method. it solves the problem that platform has a limited bearing ability. Both parts can be up and down so it is much easier to process objects with variation in thickness
For some heavy duty stone. We can put the upper part onto them directly. So that avoiding the difficulty of moving heavy material, meanwhile, it solves the problem that platform has a limited bearing ability. Both parts can be up and down so that engraving objects with greatly thickness changing is much easier to process.
Applicable materials:
Marble, granite, tombstone, wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, glass and other non-metal materials, etc
Factory workshop:
Type | ES-D1390 |
Laser power | 60w/80w/100W |
Working size | 1300x900mm |
Laser type | Sealed CO2 laser tube |
Working table | Flat worktable |
Cooling type | Water cooling |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-40000mm/min |

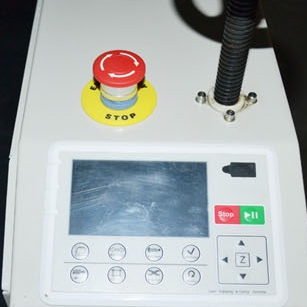

Controller | DSP offline controlling |
Smallest character | Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm |
Locating precision | ≤±0.01mm |
Supported graphic format | PLT,AI,BMP.DST,DXF etc. |
Power supply | AC 110 - 220V±10%, 50 - 60Hz |
Operating temperature | 0-45°C |
Compatible software | Coreldraw,Photoshop,AutoCAD, |
Color separation | yes |
Operation system | Windows98/ME/2000/XP/VISTA/Windows7/8/10 |
Machine size | 1.9x1.4x1.13m |
Machine weight | 420KGS |
Package size | 2.01x1.9x1.39m |
Package weight | 530KGS |
Recommended spare parts | Laser tube and lens |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine; 5 months for laser tube and mirrors.
24 hours technical calling or e-mail service for any technical questions of our machine.
We offer detailed User Manual and videos for machine installation, operation, and also for Software.
