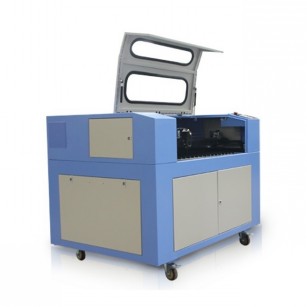

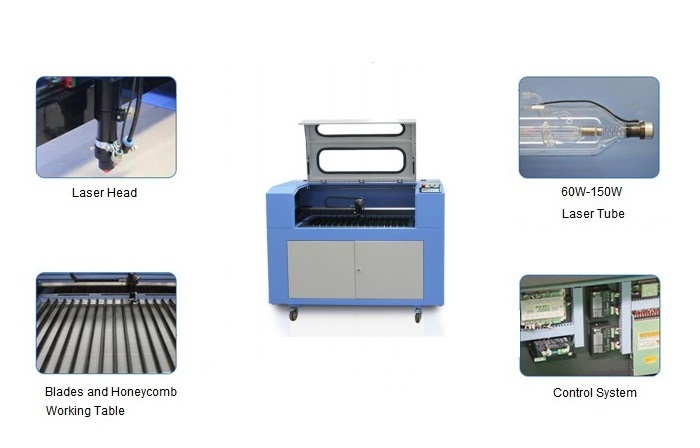

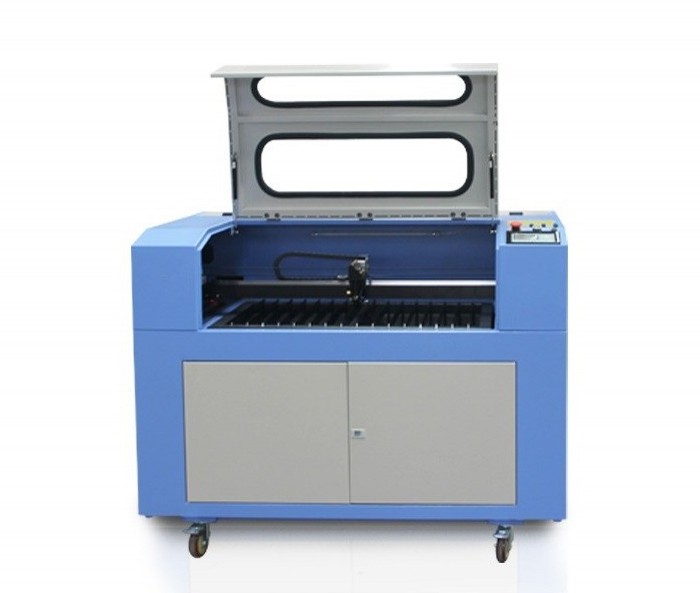

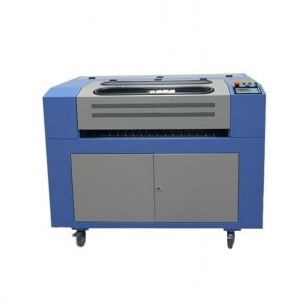

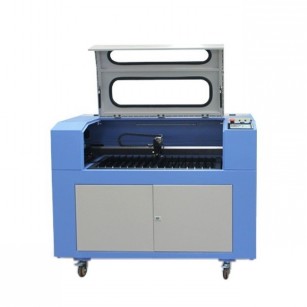

ES-9060 series laser cutting engraving machines adopt DSP digital controlling technology, self-design laser power supply,incorporate designed frame and structure to guarantee stable work. The newest software is compatible to AutoCAD, CoreIDRAW,Photoshop and all other graphics processing software for outputting original graphics. This series machines firstly use USB port data interface which supports hot-plugging and momentary data transmission to realize high efficiency without accounting computer resource. The LCD controlling panel brings friendly computer-human interface and easy operation.
It uses USB port data interface with large mass storage device to provide high working speed and efficiency.
Applicable Industries
Garment, leather, cloth toys, computer embroidery cutting, mould, crafts, bamboo and wood, advertising and building decoration, packaging and printing, paper products, etc.
Applicable Materials
Non-metal materials such as double-color sheets, acrylic, glass, wood planks, paper, leather, rubber, marble, granite and tiles, etc.
Factory Workshop
Type | ES-9060 |
Laser power | 60w/80w/100W |
Working size | 900x600mm |
Laser type | Sealed CO2 laser tube,water-cooling |
Working table | Blade or honeycomb worktable |
Cooling type | Water cooling |
Engraving speed | 0-70000mm/min |
Cutting speed | 0-40000mm/min |
Laser output control | 1-100% software setting |
Smallest character | Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm |
Locating precision | ≤±0.01mm |
Supported graphic format | PLT,AI,BMP.DST,DXF etc. |
Power supply | AC 110 - 220V±10%, 50 - 60Hz |
Compatible software | Coreldraw,photoshop,autoCAD,Tajima |
Color separation | yes |
Operation system | Windows98/ME/2000/XP/VISTA/Windows7/8/10 |
Machine size | 1.4x1.01x1.17m |
Machine weight | 270KGS |
Package size | 1.52x1.3x1.4m |
Package weight | 360KGS |
| Optional device | Rotary device, honeycomb table |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine; 5 months for laser tube and mirrors.
24 hours technical calling or e-mail service for any technical questions of our machine.
We offer detailed User Manual and videos for machine installation, operation, and also for Software.
Applicable Materials
Material | Engraving | Cutting |
Wood | √ | √ |
Acrylic | √ | √ |
Cloth | √ | √ |
Leather | √ | √ |
Rubber | √ | √ |
MDF | √ | √ |
PVC | √ | √ |
Paper | √ | √ |
Double color | √ | √ |
Plywood | √ | √ |
Balsa | √ | √ |
Cork | √ | √ |
Twill | √ | √ |
Plastic | √ | √ |
Wood veneer | √ | √ |
Delrin | √ | √ |
Die board | √ | √ |
Mat board | √ | √ |
Mylar | √ | √ |
Glass | √ | |
Tile | √ | |
Jade | √ | |
Stone | √ | |
Coated metal | √ | |
Stainless steel | ||
Carbon steel | ||
Copper | ||
Gold | ||
Silver |
