1.High speed.The maximum speed can be 1000mm/s which greatly improves working efficiency.
2.Precise engraving.Professional engraving optical lens with more stable light beam and accurate red light position are adopted.
3.Convenient putting in and putting away of materials.Working space can be opened totally and platform can be adjusted by up-and-down device.
4.Engraving speed and precision can be up to leading level in China.
5.Design software of AutoCAD,CorelDRAW,PHOTOSHOP are all supported for friendly human-computer interface and demand of the industries on-the -spot.
6. It is mainly used for processing crafts and gifts such as engraving on wooden boards, acrylic and double -color boards.
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglass, Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
Factory workshop:

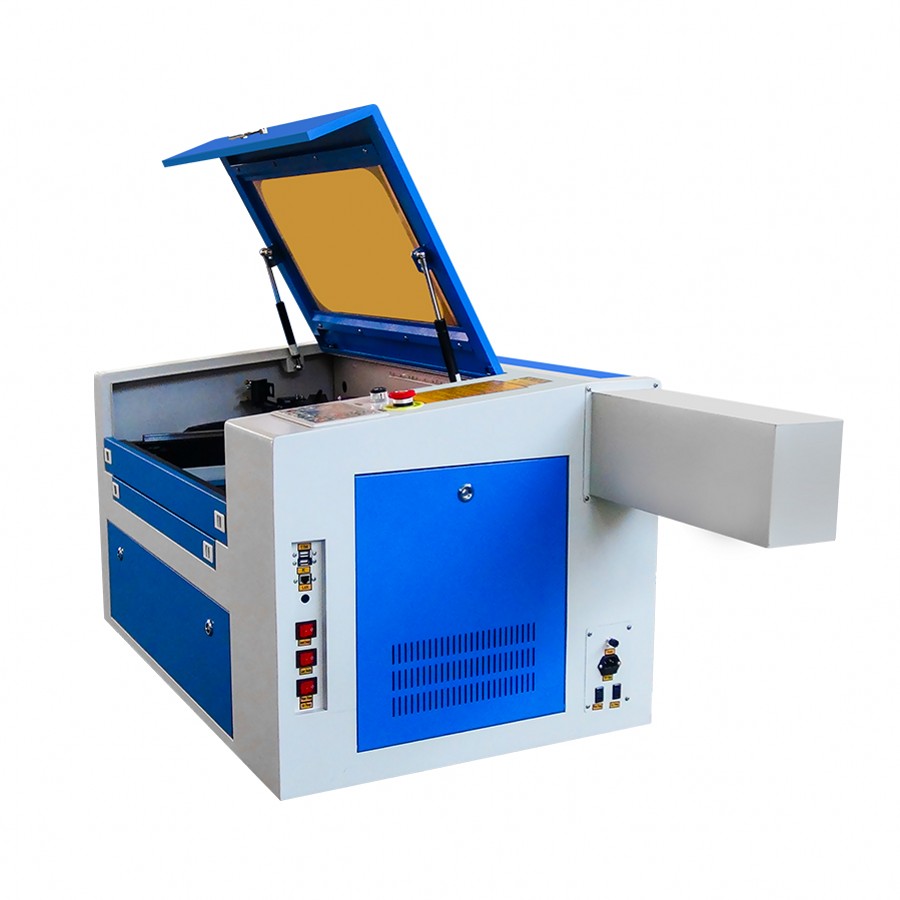

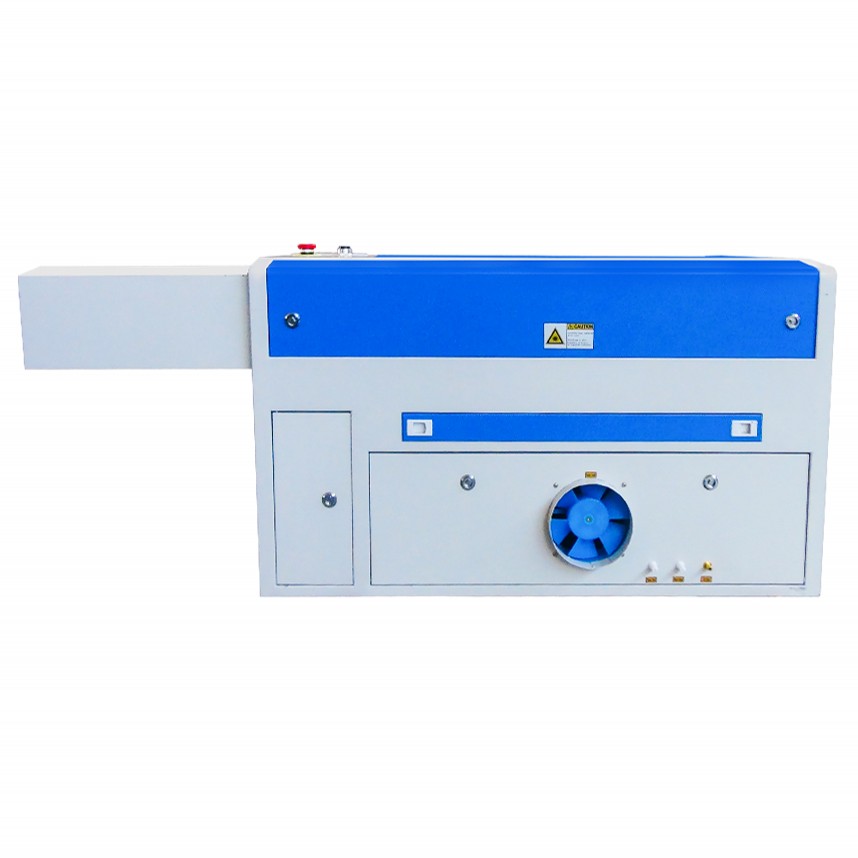

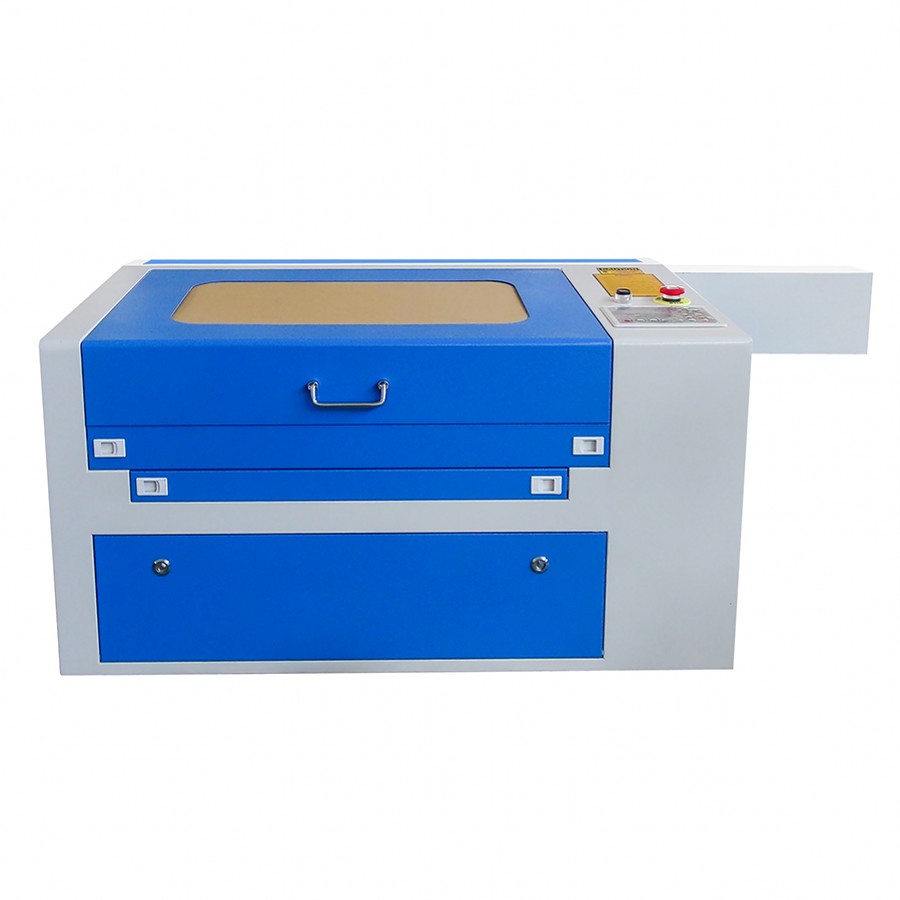

| Name | ES-5030 laser engraving machine |
| Processing area | 500mmx300mm |
| Laser power | 40W,50W,60W,80W |
| Laser type | Sealed Co2 glass laser tube |
| Cooling mode | Water cooling and protection system |
| Resetting positioning accuracy | ±0.01mm |
| Compatible software | CorelDraw AutoCAD Photoshop |
| Operation system | Windows 98/ME/2000/XP/VISTA/Windows7/8/10 |
| Engraving speed | 1-800mm/s |
| Cutting speed | 1-600mm/s |
| Cutting thickness | 0-15mm acrylic (others determined by materials) |
| Resolution ratio | ≤0.02mm |
| Position system | Red dot |
| Interface | USB |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF, AI etc. |
| Driving mode | DC0.8A 24V stepper motor |
| Working voltage | AC 110 - 220V±10%, 50 - 60Hz or depend on customer |
| Operating temperature | 0-45°C |
| Operating humidity | 5-95% |
| Machine size | 1050x650x600 mm |
| Machine weight | 78KGS |
| Package size | 1140x770x670 mm |
| Package weight | 105KGS |
| Optional device | Rotary device, honeycomb table |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine; 5 months for laser tube and mirrors
24 hours technical calling or e-mail service for any technical questions of our machine.
We offer detailed User Manual and videos for machine installation, operation, and also for Software.
Application Material:
Material | Engraving | Cutting |
Wood | √ | √ |
Acrylic | √ | √ |
Cloth | √ | √ |
Leather | √ | √ |
Rubber | √ | √ |
MDF | √ | √ |
PVC | √ | √ |
Paper | √ | √ |
Double color | √ | √ |
Plywood | √ | √ |
Balsa | √ | √ |
Cork | √ | √ |
Twill | √ | √ |
Plastic | √ | √ |
Wood veneer | √ | √ |
Delrin | √ | √ |
Die board | √ | √ |
Mat board | √ | √ |
Mylar | √ | √ |
Glass | √ | |
Tile | √ | |
Jade | √ | |
Stone | √ | |
Coated metal | √ | |
Stainless steel | ||
Carbon steel | ||
Copper | ||
Gold | ||
Silver |
