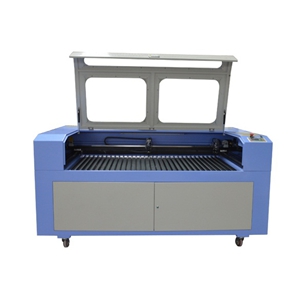

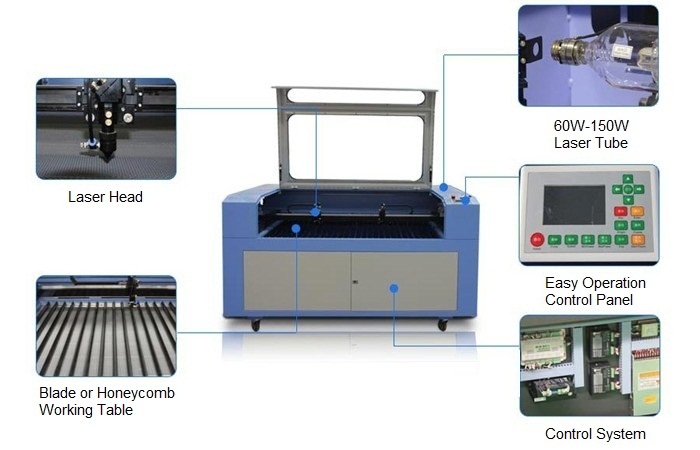

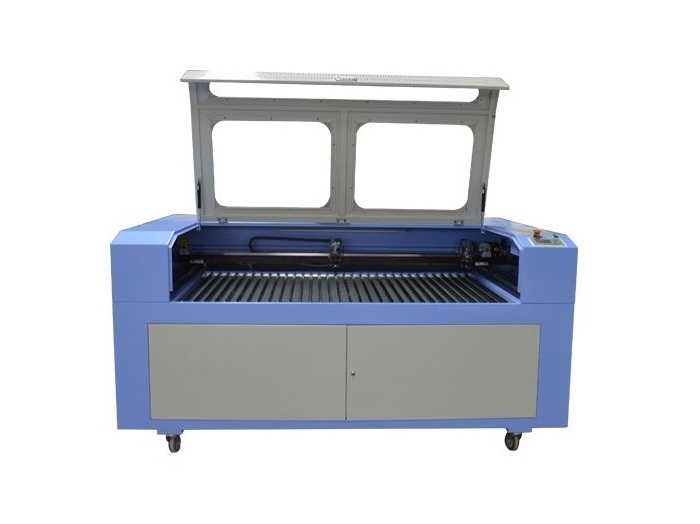

1.1610 CO2 laser cutter for non-metal adopt advanced DSP control system which continue and optimize the cutting speed, processing path, improve the working efficiency. the clearance compensation ensure the processing quality.
2. Fully supported AutoCAD,CorelDRAW,PHOTOSHOP software, friendly human computer interface.

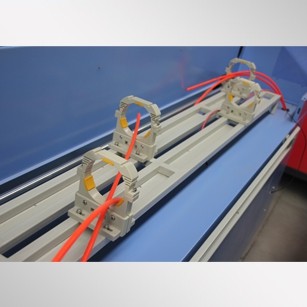

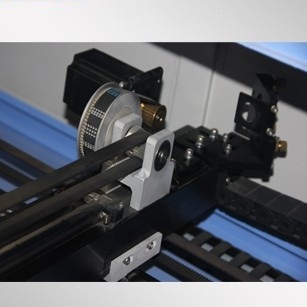

3. In the process of designing and producing-----stable mechanical design, imported linear guide rail and precision gear, make sure the high speed and high precision.
4. Special treatment easily changeable blade or honeycomb worktable, easy maintenance.
5. Widely used, make the large size and kinds of common board processing by laser machine possible.
6. Reasonable design of laser line with the industry water chiller, keep the same power-force on each spot, ensure the quality of cutting.
7. Multi-document function: the machine can store 256 files. the machine can still work out of computer.
Application Industry:
Garment,leather,cloth toys,computer embroidery cutting ,mould ,crafts,bamboo and wood,advertising and building decoration,packaging and printing,paper products,etc.
Application materials:
Non-metal materials such as acrylic, wood planks(light planks),bamboo ware, Double colored boards, paper, leather, shells, coconut shells, ox horns, resin animal grease, ABS boards, etc.
Factory workshop:
Type | ES-1610 |
Laser power | 80w/100W/130W/150W |
Working size | 1600x1000mm |
Laser type | Sealed CO2 laser tube,water-cooling |
Working table | Blade or honeycomb worktable |
Cooling type | Water cooling |
Engraving speed | 0-48000mm/min |
Cutting speed | 0-36000mm/min |
Cutting thickness | 0-30mm acrylic (others determined by materials) |
Smallest character | Chinese 0.5mmx0.5mm,English 0.5mmx0.5mm |
Locating precision | ≤±0.01mm |
Supported graphic format | PLT,AI,BMP.DST,DXF etc. |
Power supply | AC 110 - 220V±10%, 50 - 60Hz |
Operating temperature | 0-45°C |
Compatible software | CorelDRAW,photoshop,autoCAD, |
Color separation | yes |
Operation system | Windows 98/ME/2000/XP/VISTA/Windows7/8/10 |
Machine weight | 510KGS |
| Optional device | Rotary device, Honeycomb table |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom of this kind machine, all our laser machine can protect well during long trip by sea, train or air.
Guarantee and after sale service:
2 year guarantee for whole machine; 5 months for laser tube and mirrors.
24 hours technical calling or e-mail service for any technical questions of our machine.
We offer detailed User Manual and videos for machine installation, operation, and also for Software.
Application materials:
Material | Engraving | Cutting |
Wood | √ | √ |
Acrylic | √ | √ |
Cloth | √ | √ |
Leather | √ | √ |
Rubber | √ | √ |
MDF | √ | √ |
PVC | √ | √ |
paper | √ | √ |
Double color | √ | √ |
Plywood | √ | √ |
Balsa | √ | √ |
Cork | √ | √ |
Twill | √ | √ |
Plastic | √ | √ |
Wood veneer | √ | √ |
Delrin | √ | √ |
Die board | √ | √ |
Mat board | √ | √ |
Mylar | √ | √ |
Glass | √ | |
Tile | √ | |
Jade | √ | |
Stone | √ | |
Coated metal | √ | |
Stainless steel | ||
Carbon steel | ||
Copper | ||
Gold | ||
Silver |
