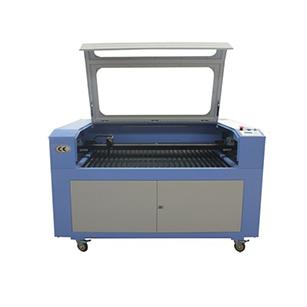

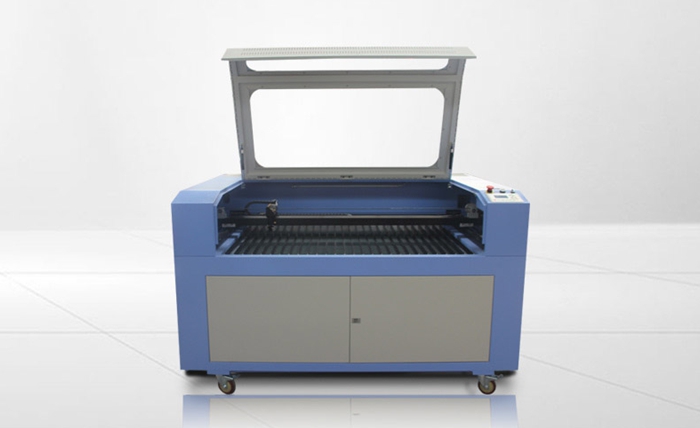

There is big improvement on this model machine,including moving system and machines features. The outlook is more attractive, separated design is much easy for shipping and moving. Working efficient is much high mean while reduce the labor and lower the cost. This machine proved to be warm welcome by the customers.

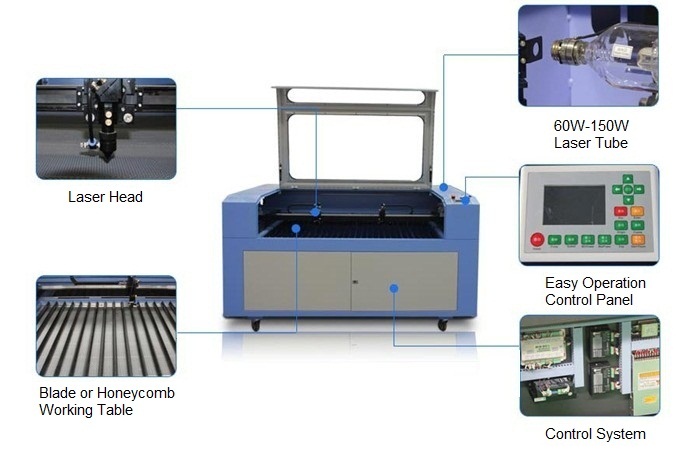

1. Isolate between Laser tube and working area, guarantee the laser tube safety and make the light path clean.
2. All switches, sockets and fast connection are not jut out of surface of the machine, adopt fireproof glass for safely operation.
3. With the drawer and the funnel design for remnant, convenient to use.
4. Automatic lift table, rotary device are optional to process circular object.
5. Optional double laser heads cutting machine so that the exponential growth efficiency.
6. Suitable for large and medium-sized enterprises in the mass production, and also suitable for small enterprises and individual processing.
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas, Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
Factory workshop:
Type | ES-1390 |
Laser power | 60w/80w/100W/130W/150W |
Working size | 1300x900mm |

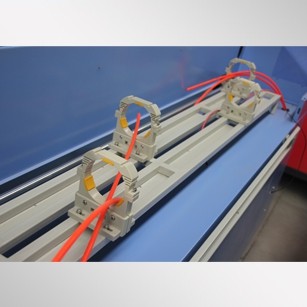

Laser type | Sealed CO2 laser tube,water-cooling |
Working table | Blade or honeycomb worktable |
Cooling type | Water cooling |
Engraving speed | 0-60000mm/min |
Cutting speed | 0-40000mm/min |
Cutting thickness | 0-30mm acrylic (others determined by materials) |
Smallest character | Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm |
Locating precision | ≤±0.01mm |
Supported graphic format | PLT,AI,BMP.DST,DXF etc. |
Power supply | AC 110 - 220V±10%, 50 - 60Hz |
Operating temperature | 0-45℃ |
Compatible software | CorelDRAW,photoshop,autoCAD, |
Color separation | yes |
Operation system | Windows 98/ME/2000/XP/VISTA/Windows7/8/10 |
Machine size | 1.9x1.4x1.13m |
Machine weight | 420KGS |
Package size | 2.01x1.9x1.39m |
Package weight | 530KGS |
| Optional device | Rotary device,Honeycomb table |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine; 5 months for laser tube and mirrors
24 hours technical calling or e-mail service for any technical questions of our machine
We offer detailed User Manual and videos for machine installation, operation, and also for Software
Application materials:
Material | Engraving | Cutting |
Wood | √ | √ |
Acrylic | √ | √ |
Cloth | √ | √ |
Leather | √ | √ |
Rubber | √ | √ |
MDF | √ | √ |
PVC | √ | √ |
paper | √ | √ |
Double color | √ | √ |
Plywood | √ | √ |
Balsa | √ | √ |
Cork | √ | √ |
Twill | √ | √ |
Plastic | √ | √ |
Wood veneer | √ | √ |
Delrin | √ | √ |
Die board | √ | √ |
Mat board | √ | √ |
Mylar | √ | √ |
Glass | √ | |
Tile | √ | |
Jade | √ | |
Stone | √ | |
Coated metal | √ | |
Stainless steel | ||
Carbon steel | ||
Copper | ||
Gold | ||
Silver |
