1.Fast cutting function: it can cut via any curve fast continuous cutting, the laser heads moving in beautiful arc just evoke your imagination of top grade racing car.
2. To fully support design software, such as AutoCAD, CORELDRAW, PHOTOSHOP, friendly human-machine interface, live close to the industry needs.
3. Multi-document function: can store as many as 256 working documents, in the case of without the computer, the user can select files in the engraving machine, the mass production of 256 different products.
4. All-optical isolation system with high speed differential input and output circuit design, long distance transmission signal without distortion, strong anti-jamming capability, system has realized the no.12 working state output, state 16-way input, to dock with the user production site easily.
5. Large-format laser cutting incision smooth fine, meet the blanking, machining the whole piece of cloth.

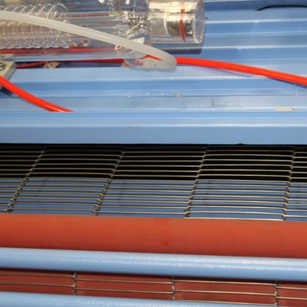

6. Stable light path design, match industrial water-cooled machine, ensure the large-format, cutting the position work surface laser power output is consistent, fast and efficient, stable machining quality.

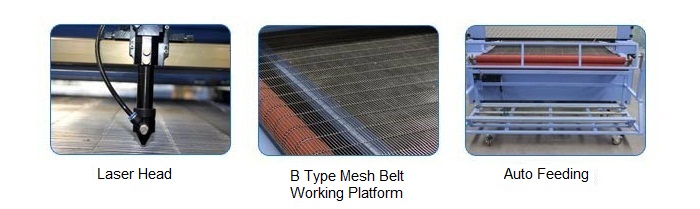

7. Automatic feeding and discharging, save time, improve work efficiency, it can customize according to customer's demand level.

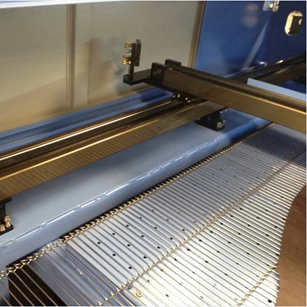

8. Feeding system adopts special words with mesa, automatic feeding device, convenient processing objects move freely on the surface of the cutting machine.
9. The machine used in clothing, textiles, leather and other industries.Mainly used for plate, cloth, leather and other non-metal cutting and carving.
Application Industry:
genuine leather,artificial leather ,soft leather,decorative leather, packaging leather,etc. all kinds of leather,leather materials,pure cotton, real silk, all kinds of chemical fiber, jeans and so on .all kinds of textile materials, or non-woven material.
Factory Workshop:
Type | ES-A1810 |
Laser power | 80w/100W/130W/150W |
Working size | 1800x1000mm |
Laser type | Sealed CO2 laser tube,water-cooling |
Working table | Auto feeding conveyor |
Cooling type | Water cooling |
Controlling system | DSP |
Cutting speed | 0-600mm/s |
Smallest character | Chinese 1.0mmx1.0mm,English 0.5mmx0.5mm |
Locating precision | ≤±0.01mm |
Supported graphic format | PLT,AI,BMP.DST,DXF etc. |
Power supply | 220V/50HZ , 110V/60HZ |
Operating temperature | 0-45°C |
Compatible software | Coreldraw,photoshop,AutoCAD, |
Operation system | Windows98/ME/2000/XP/VISTA/Windows7/8/10 |
Machine weight | 900KGS |
Machine size | 2.59*2.18*1.49M |
Package and Shipping:
Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottom With this kind machine, all our laser machine can protect well during long trip by sea,train or air.
Guarantee and after sale service:
2 year guarantee for whole machine; 5 months for laser tube and mirrors
24 hours technical calling or e-mail service for any technical questions of our machine.
We offer detailed User Manual and videos for machine installation, operation, and also for Software.
